Script Contexts

There are two different script context types:

Both are based on ScriptContext and this is what they both have in common.

ProcessScriptContext

The ProcessScriptContext contains the input and output documents, in addition to the information in ScriptContext. A Document consists of the document content and its (dynamic document) properties.

public List<Document> inputDocuments = []
public List<Document> outputDocuments = []
Process ScriptContext example

The following examples demonstrates how to setup all kind of properties and documents to run a process script.

ProcessScriptContext context = new ProcessScriptContext()
// Initialize
// * Execution context          : executionContexts
// * Dynamic Process Properties : dynProcPros
// * Process Properties         : procPros
// * Documents                  : inputDocuments
//      incl. Dynamic Document Properties
// --------------------------------------------------------------

// context.executionProperties.ACCOUNT_ID = "My Account ID"

context.dynProcPros.DPP_ProcPropString = "My Process Property"
context.dynProcPros.DPP_IntValue = 0

// region Process Property

final String PROCESS_PROPERTY_COMPONENT_ID = "8fb41f63-a988-4778-8cc8-0144f30ace81"
final String VAL1_ID = "eea9e988-cb14-4a84-ba37-ee455451a741"
final String VAL2_ID = "2c68fb60-8431-46cc-9da9-cbe10d446a0e"

// Wrap key in parenthesis so that the variables (Ids) are taken
// and not the text as a string

def procPropValue1 = 4711
def procPropValue2 = "Markus Schmidt"

context.procPros = [ (PROCESS_PROPERTY_COMPONENT_ID):
	[
		(VAL1_ID): procPropValue1,
		(VAL2_ID): procPropValue2
	]]
// endregion

// region Documents

final String DDP_Name = "DDP_IntValue"
int[] ddpValues = [ 10, 11, 12]

context.inputDocuments =
[
	Document.fromText('''
	{
		"firstname" : "Walter",
		"lastname" : "Schmidt"
	}''', [(DDP_Name): ddpValues[0]]),
	Document.fromFile( _testFiles.get( "demoDoc01.json") , [(DDP_Name): ddpValues[1]]),
	Document.fromFile( _testFiles.get( "demoDoc02.json") , [(DDP_Name): ddpValues[2]])
]

// endregion

_testScript.run(context)

MapScriptContext

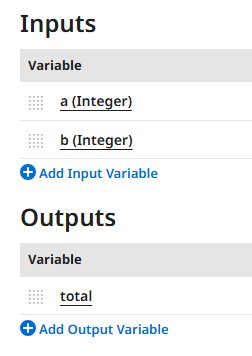

A MapScriptContext represents the input and output variables as they are defined on the platform, in addition to the information in ScriptContext.

MapScriptContext scriptContext = new MapScriptContext(  [
    a: 5,
    b: 7
])

_testScript.run(scriptContext)

assert scriptContext.variables.total
  == (scriptContext.variables.a as int)
   + (scriptContext.variables.b as int),
   "Calculation result does not meet expectations!"

ScriptContext

The ScriptContext is the base class,MapScriptContext and ProcessScriptContext inherit from it. The ScriptContext hosts:

  • Process Properties - procProps

  • Dynamic Process Properties - dynProcProps

  • Execution Properties - executionProperties

public Map dynProcPros = [:]
public Map procPros = [:]

public final Map executionProperties =
[
 ACCOUNT_ID  : 'IntelliJ_IDEA-M42S66',
 ATOM_ID     : '0b6e3ab7-9d81-4954-b781-d212195e577c',
 ATOM_NAME     : 'Markus Groovy 4 Boomi',

 // null on local Atom, some text on Cloud ATOM (e.g. NODE_ID = atom01)
 NODE_ID       : null,

 // set before script starts - ProcessScriptContext run
 DOCUMENT_COUNT: 0,

 // see Process Call Chain
 // If you do not plan to use ExecutionTask objects in your
 // scripts you can live with the defaults and you won't care!
 EXECUTION_ID : generateExecutionId(), // random
 PROCESS_ID   : UUID.randomUUID().toString(),
 PROCESS_NAME : "My Main Process"
]

If you want to use ExecutionTask objects in your scripts, read also about The Process Call Chain
